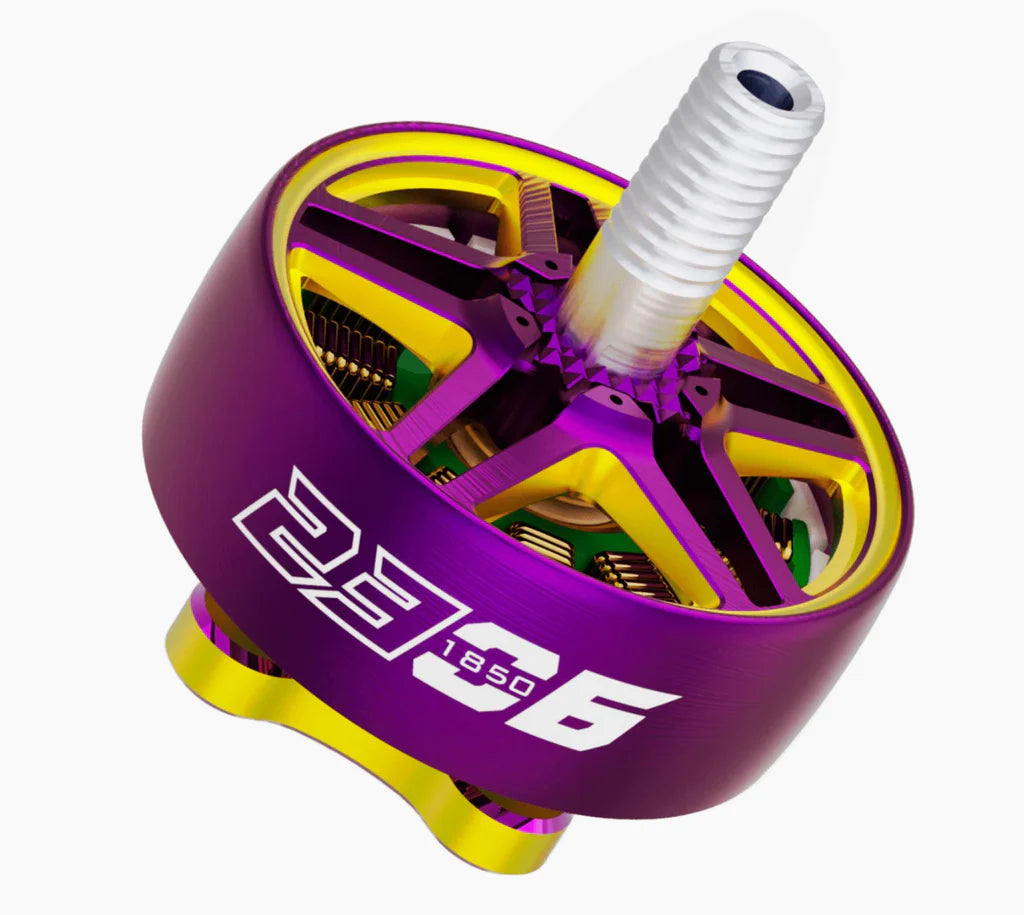

VCI 2306-1850kv titan
AED 99.00
Discover Vulcan Innovation and its racing motors, the Titan 2306.
This Titan version in 1850KV is ideal for freestyle, it guarantees smoother operation and higher efficiency providing an immersive flight experience.
The VCI 2306 have an M5 nut shaft and will be perfect associated with Gemfan F4S three-blade propellers.
Specifications
KV1850
Shaft TypeNut
Shaft SizeM5
Size23XX
- KV: 1850
- Configuration: 12S14P
- Internal Resistance : 95mΩ
- Shaft length : 13mm
- Rated voltage : 6S (24V)
- Peak current : 30.18A
- Idle Current (10V) : 0.7A
- Magnets : N52SH arc
- Stator size : ⌀23*L6mm
- Dimensions : ⌀28.7*L31.4mm
- Shaft diameter : M5
- Silicone wire : 20AWG 150mm
- Max power : 724.32W
- Weight (with cable) : ~32.35g
