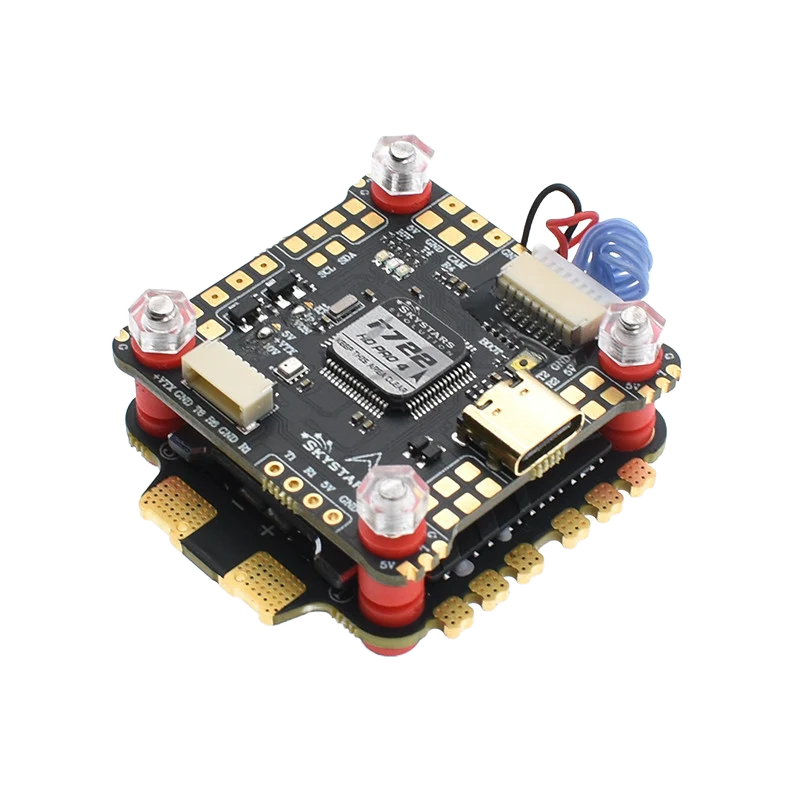

This Skystars stack is built with a sturdy design and numerous capabilities. The FC is powered by the F7 chipset, ensuring compatibility with larger flight firmwares like  Betaflight. The KM60 ESC delivers up to 60 amps and can handle 3-6S batteries. With 30x30mm mounting holes, this stack is ideal for a larger FPV drones.

Note: Item may differ from pictures.

Package Includes:

1x SkyStarsRC Fly Stack F7 HD Pro3 3-6S 30x30 Stack/Combo (F722 FC / KM60 32Bit 60A 4in1 ESC)

4x Damping Rubbers (M3x3.5mm)

1x XT60 connector and wires

2x 8pin wiring harness (1x 70mm,1x 50mm)

1x 35v 560uf Capacitor

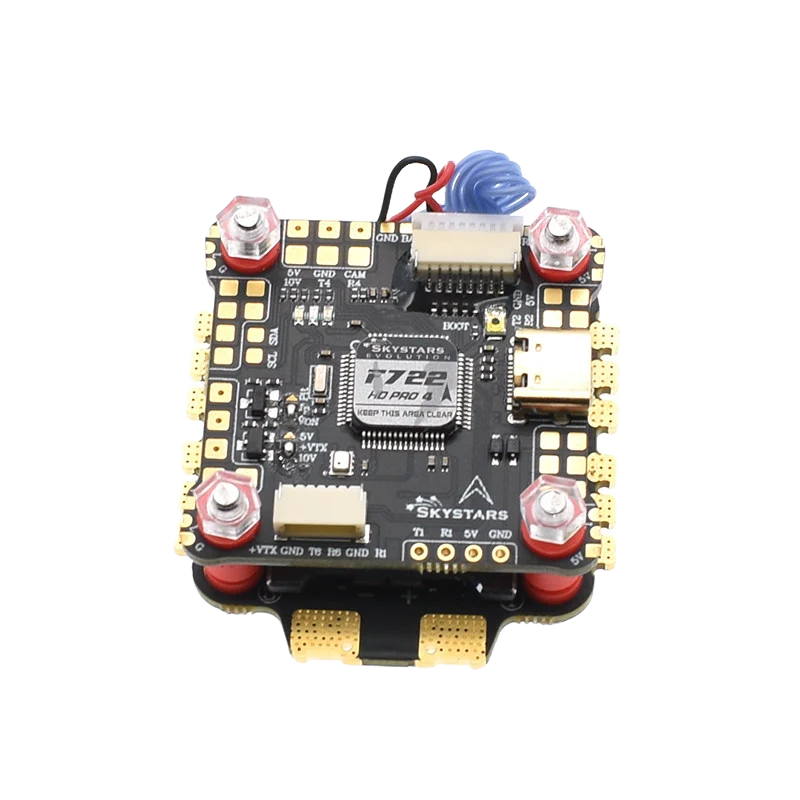

Flight Controller Specifications:

MCU: STM32F722RGT6 216MHz

Gyroscope: BMI270

Baro: Bmp280

OSD: Betaflight SPI OSD DJI HD OSD(UART6)

Black box: 16MB

6x Uarts: UART 1/2/3/4/5/6

4x PWM outputs

1x I2C

3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

USB Type-C(USB2.0)

1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)

1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)

VTX 10V/Vbat filtered power ON/OFF switch

DJI FPV OSD is supported by any spare UART

LED: 4 LED independent pads, support WS2812 programming lamp output. Receiver:  Support Sbus, CRSF, IBUS, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

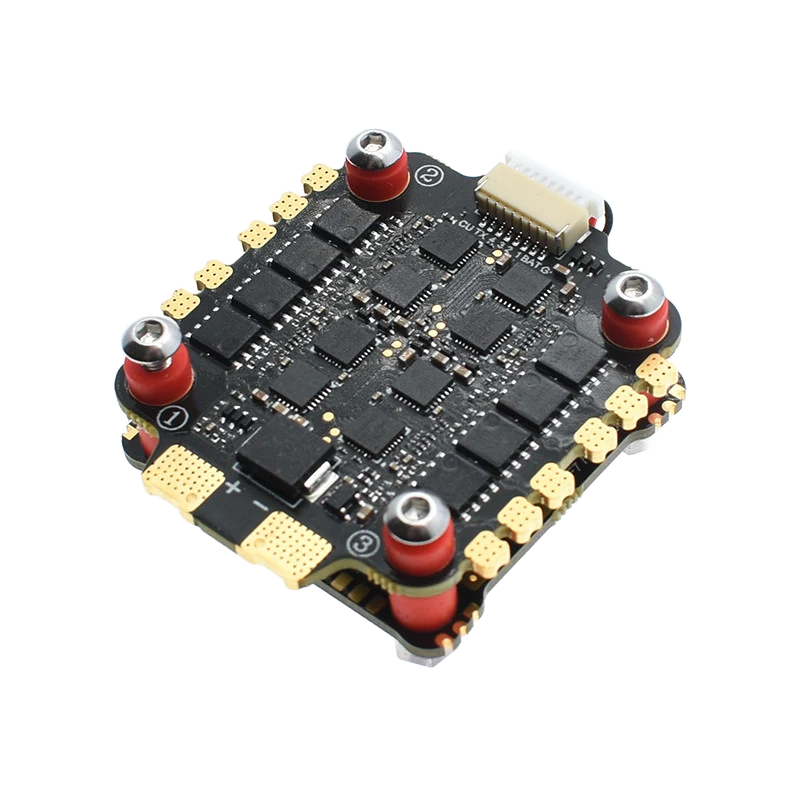

ESC Specifications:

Input Battery: 3-6S LiPo

Con. Current: 60A

Peak Current: 70A≥ 10S

Firmware: BLHeli_32

Support: Dshot 600/1200

Mounting pattern: 30.5mm/M3

BEC: No

Product size: 41x46x7.6mm

Weight: 17g about
