Feature

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. 9V@2.5A + 5V@3A dual independent BEC

Specifications

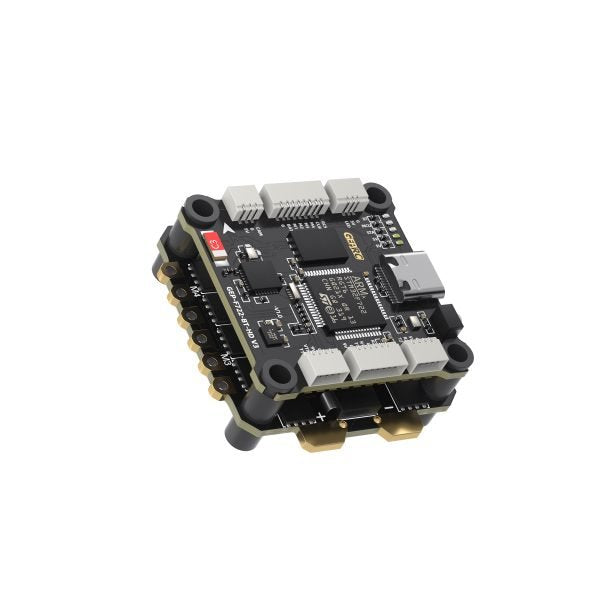

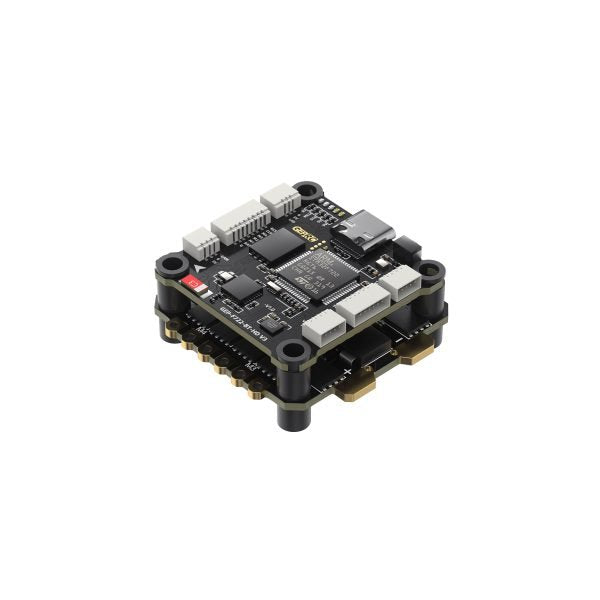

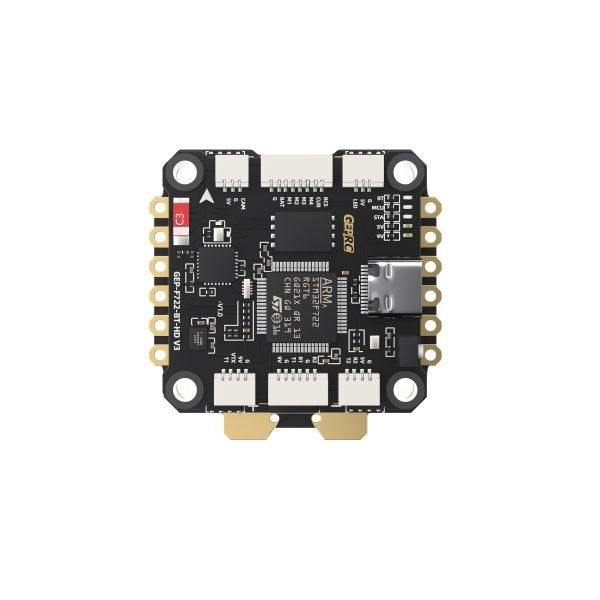

GEP-F722-BT-HD V3 Flight Controller

• MCU: STM32F722
• IMU：ICM42688-P(SPI)
• Air Unit Connection: Directly plugs into the DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A, 9V@2.5A dual BEC
• Firmware Target: GEPRCF722_BT_HD_V3
• Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
• Input Voltage: 3-6S LiPo
• UART: 5 groups (UART4 fixed for Bluetooth)
• Power Filter: Integrated LC filter
• Weight: 8.2g

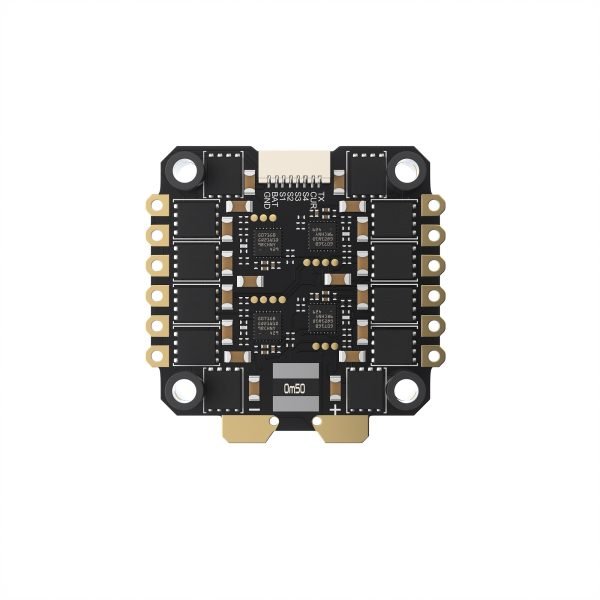

GEP-BL32 50A 96K 4IN1 ESC

• Model: GEP-BL32 50A 96K 4IN1 ESC
• Input Voltage: 3-6S Lipo
• Continue Current：50A
• Burst Current: 55A (5 second)
• Galvanometer：Support
• Telemetry: Support
• Support Protocol: Dshot 150/300/600
• Size：42.5×42.1mm，hole30.5×30.5mm
• Weight：14g
• Target: ST_G0_05 – 31.92
• Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability
  (AM32 also supported; customer flashing required.)

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
