Feature

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. 9V@2.5A + 5V@3A dual independent BEC

Specifications

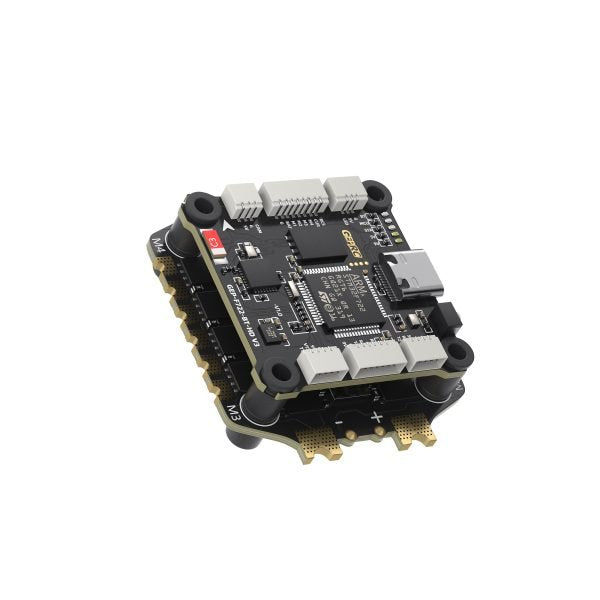

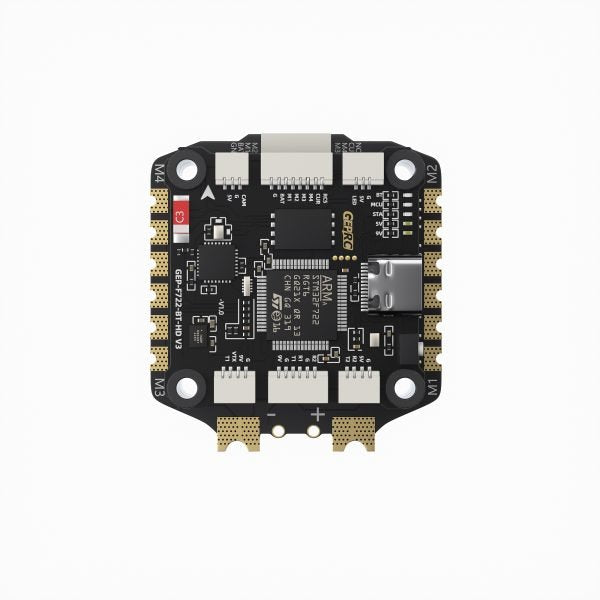

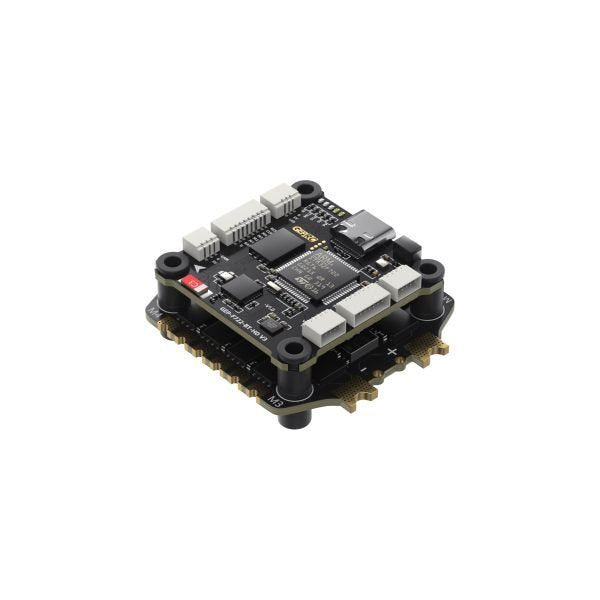

GEP-F722-BT-HD V3 Flight Controller

• MCU: STM32F722
• IMU：ICM42688-P(SPI)
• Air Unit Connection: Directly plugs into the DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A, 9V@2.5A dual BEC
• Firmware Target: GEPRCF722_BT_HD_V3
• Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
• Input Voltage: 3-6S LiPo
• UART: 5 groups (UART4 fixed for Bluetooth)
• Power Filter: Integrated LC filter
• Weight: 8.2g


TAKER H65_8S_BLS 65A 4IN1 ESC

• Input Voltage: 3-8S Lipo
• Ammeter: Support
• Continue Current：65A
• Burst Current: 70A (5 second)
• Support Protocol: Dshot 150/300/600
• Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
• Weight: 14.9g
• Target: B_X_30

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
